The vehicle adopts advanced computer aided design software to optimize the design, according to the vehicle bearing quality requirements, the finite element analysis of the frame, scientific design, reasonable load division, the same load, effectively reduce the product weight, can effectively improve the loading and unloading and transportation efficiency.

Fence Cargo Trailer was popular by logistics companies as its multipurpose application. It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

Dimension: 14000x3000x3750mm (customized according to your requirement)
Capacity: Max.100tons
Axle: 4 axles, BPW / FUWA brand
Landing Gear: JOST brand with two speeds
Suspension: Mechanical suspension reinforced type
Leaf Spring: 90mm(W)*16mm(T)*10pcs
Tire: 315/80R22.5, 12R22.5
Color: Optional

Low flatbed trucks are mainly used to transport some non-removable objects like excavators, loaders and harvesters.
The use of three-axis balance type, two-axis balance type or steel suspension, there is a mass balance block between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs equal to change, so that the force balance of the front and rear axes.
The main plane of the frame cargo platform is low, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel. The computer aided design software used in the whole vehicle is flexible and diverse for optimization design, and the frame bearing surface is designed according to user requirements to meet the transportation of various special goods.

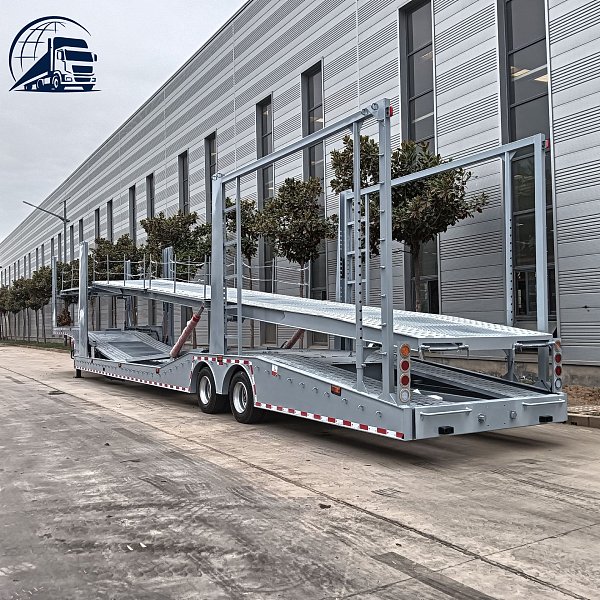

Product Name: 2 Axle Car Hauler Trailer for Sale
Function: Transport car
Overall Dimension: 13000x2500x1600mm
Loading Weight: 40tons
Main Beam: Up Plate: 14mm, Down Plate: 12mm, Middle Plate: 10mm
Side Beam: 22mm channel steel
Traction Pin: JOST Brand, optional 2” or 3.5”
King Pin: 50mm or 90mm
Axle: 13ton for each axle
Axle Brand: FUWA

Overall dimension: 16000×3000×3400mm
Loading capacity: 40~100T
Axle: 13T / 16T, FUWA / BPW
Rim: 8.0~20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: Width 90mm, Thickness 13mm, 10layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper Plate: 20mm, Middle Plate: 12mm, Lower Plate: 20mm
Material: Q345B carbon steel

Overall dimension: 16000×3000×3400mm
Loading capacity(T): 40~100T
Axle: 13T/16T, FUWA / BPW
Rim: 8.0~20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: Width 90mm, Thickness 13mm, 10layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper Plate: 20mm, Middle Plate: 12mm, Lower Plate: 20mm
Material: Q345B carbon steel

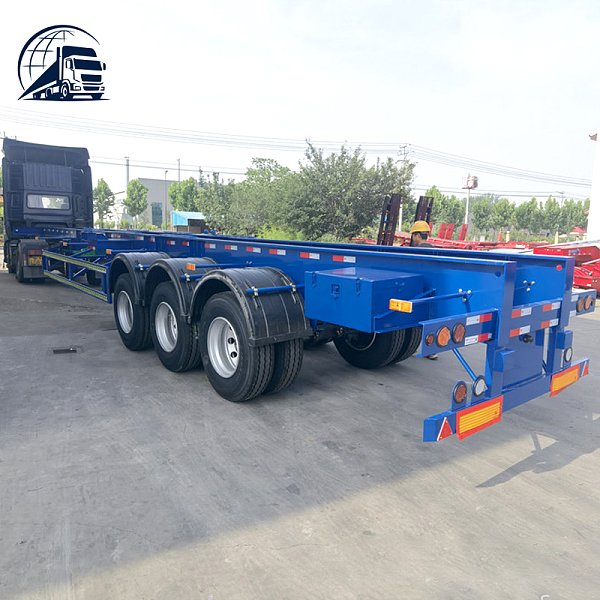

Skeleton Semi-Trailer is a kind of loading and unloading equipment which is widely used in the field of logistics and transportation. It has the characteristics of stable structure, strong load capacity, easy operation, etc., and provides reliable support for the fast and efficient transportation of goods.

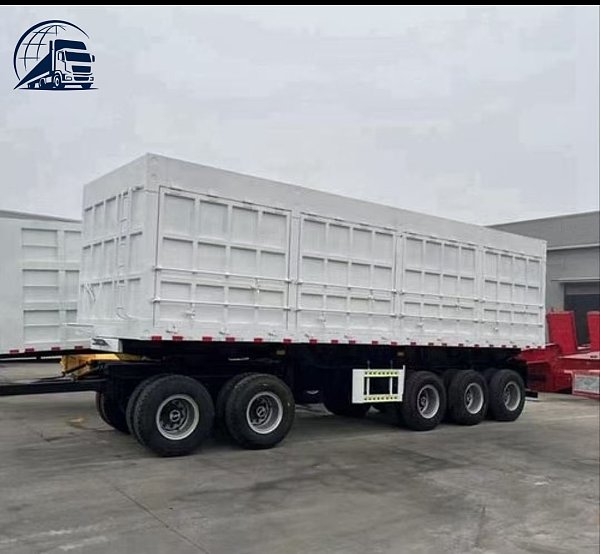

U-shaped Tipper Trailer Semi Trailers are mainly used to transport bulk goods such as coal, ore, and building materials. Its advantages include:
Efficient unloading: U-shaped cargo box design, no dead angle, cleaner unloading, and improved transportation efficiency.
Light weight: The structure is optimized and high-strength plates are used to reduce the weight of the carriage and improve the load utilization factor.
Strong carrying capacity: High-strength steel plates are used, with high yield strength, better impact resistance and fatigue resistance.
In summary, U-shaped rear dump trailers play an important role in logistics and transportation with their high efficiency, lightness and strong carrying capacity.
